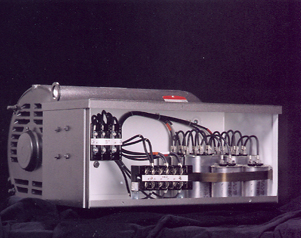

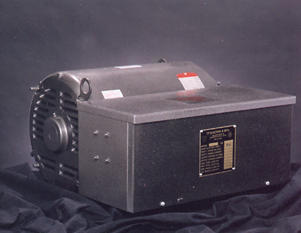

Rotary Phase Converters
Rotary phase converters are used for multiple motor applications where maximum reliability and maintenance free service is required. When operating computers, transformers, motors and machinery of all types, these highly versatile converters are the obvious choice. Rotary converters are constructed with the same high quality components as other TP converters.
Designed to run any combination of motor and non-motor equipment. Allows motors to develop 100% of rated horsepower with up to a total load of three times the nameplate rating with capacity for instant load motor reversals and unlimited frequency of start-stop cycles. Converter voltage and horsepower rating should be the same as the largest motor to be operated. If the motor is required to start under high torque of heavy load condition, the next large size converter should be used. For maximum reliability and maintenance free service, TP Electric only offers heavy-duty rotary converters.
| Largest Motor HP | Maximum Total HP |
Model |
| 1 | 3 | RT-1 |
| 1.5 | 4 | RT-1.5 |
| 3 | 9 | RT-3 |
| 5 | 15 | RT-5 |
| 7.5 | 22 | RT-7.5 |
| 10 | 30 | RT-10 |
| 15 | 45 | RT-15 |
| 20 | 60 | RT-20 |
| 25 | 75 | RT-25 |
| 30 | 90 | RT-30 |
| 40 | 120 | RT-40 |
| 50 | 150 | RT-50 |
| 60 | 180 | RT-60 |
| 80 | 225 | RT-80 |
| 100 | 300 | RT-100 |
